Factories, utility plants, substations, and infrastructure projects often need to carry heavy power cables over long distances. GI ladder type cable trays provide a strong and ventilated pathway that keeps these cables organised and accessible.

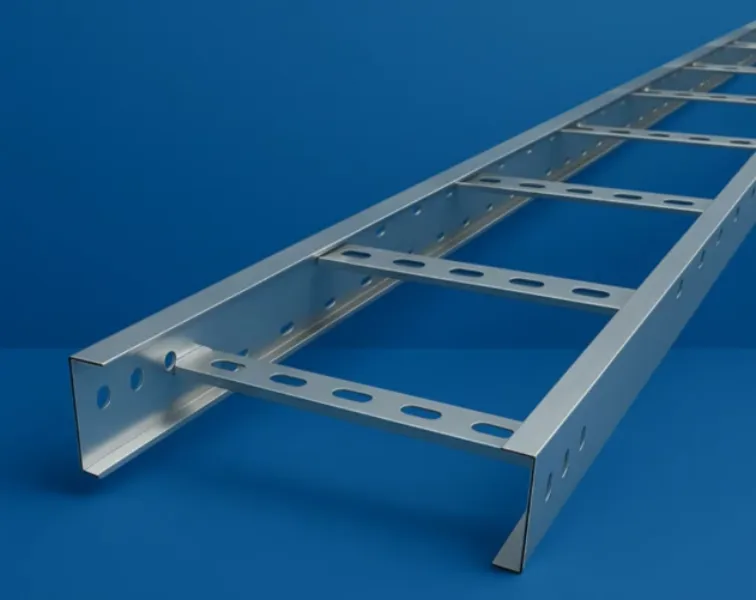

Devansh Enterprises manufactures GI ladder type cable trays for industrial and commercial electrical installations. The system consists of two side rails connected by regularly spaced rungs, creating a structure suited to large-diameter cables and demanding routes.
Why GI Ladder Trays Suit Pune Industries
Pune has a broad industrial base covering automotive manufacturing, engineering, pharmaceuticals, food processing, logistics, and electrical equipment production. Facilities in Chakan, Bhosari, Talegaon, Ranjangaon, and Pimpri-Chinchwad commonly require dependable pathways between electrical rooms, panels, machinery, and utility areas.
GI ladder trays can support cable routes connected with:
- Main power distribution
- Motor control centres
- Transformers
- Switchgear panels
- Production machinery
- Generator systems
- HVAC equipment
- Renewable-energy installations
Their open structure allows air to move around the cables and gives maintenance teams clear access for inspection.
GI Ladder Trays Compared With Perforated Trays
Ladder trays are usually considered for heavy power cables, larger cable diameters, and routes requiring effective ventilation. The rungs provide defined support points, while the side rails deliver longitudinal strength.
Perforated trays have a continuous base with ventilation openings. They provide broader support and can be better suited to smaller power, control, and instrumentation cables.
Neither design is automatically suitable for every route. Selection should reflect cable weight, bending radius, support span, cable size, and maintenance requirements.
How to Assess Tray Strength
A GI ladder type cable trays manufacturer should produce trays according to the project’s mechanical load requirements. Tray width alone does not indicate strength.
Buyers should review:
- Side-rail height and profile
- Sheet thickness
- Rung dimensions
- Rung spacing
- Quality of welded joints
- Distance between structural supports
- Total cable load per metre
- Additional future cable capacity
Long support spans place greater stress on the tray. Using thinner sections simply to reduce initial cost can lead to deflection and joint movement after cables are installed.
Galvanised Finish Considerations
The term GI can refer to different galvanised material conditions. Pre-galvanised steel is usually selected for protected indoor environments. Hot-dip galvanised trays are more appropriate for outdoor and moisture-exposed areas.
Project specifications should clearly mention the required material and coating method. This prevents confusion during procurement and helps ensure that the supplied tray matches the actual site conditions.
Accessories and Installation Readiness
A functional cable route requires more than straight ladder sections. Typical accessories include:
- Horizontal bends
- Internal and external vertical bends
- Tees and cross sections
- Width reducers
- Coupler plates
- Tray covers
- Wall and ceiling supports
- Hold-down clamps
- Cable cleats
Vertical routes need particular attention because cable weight acts along the installation. Properly spaced cable cleats help transfer this load and prevent cable movement.
The tray system should also be bonded according to applicable electrical requirements. Joints, supports, and transitions must not interrupt the planned earthing continuity.
GI ladder cable trays can provide dependable support when material grade, coating type, tray strength, support spacing, and accessory compatibility are specified together. This coordinated approach helps industrial projects in Pune maintain safe, accessible, and expandable power cable routes.
